Product Information

Metrology Tools » Combination Sets » Traditional Precision Combination Set Imperial

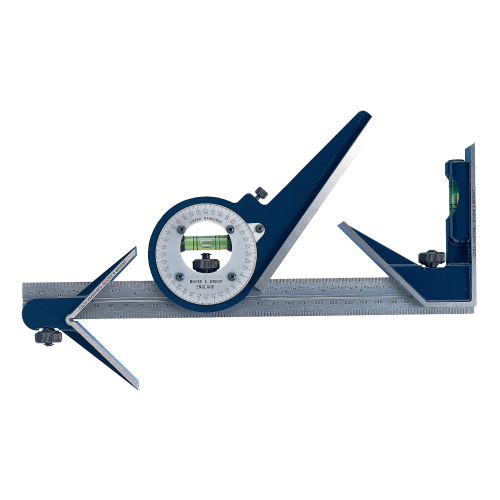

MOORE & WRIGHT Traditional Precision
Combination Set Imperial
Product Code MW-CSME12
Product Description Traditional Precision Combination Set Imperial
Brand MOORE & WRIGHT
Product Dimensions 0-12"/0-300mm
Features & Benefits Fully hardened and tempered precision rules with deeply etched graduations on both sides for ease of reading and long life
Fully hardened and ground datum faces to resist wear
Centrally mounted protractor vial allows unrestricted viewing
Protractor has full 360 degree scale plate, graduated 0-180 degrees
Satin chrome scale plate on protractor
Unique rule clamp allows positive location and clamping
Square head offers the following fixed angles
15, 30, 45, 60, 75 and 90 degrees
Centre head offers a fixed 90 degree angle, for finding the centre of round bar stock up to 120mm diameter
Clipped corner on rule to maximise capability
Barcode 5012095001522
