Product Information

Engineering & Industrial Tools » Magnets and Magnetics » Magnetic Workholding » Magnetic Holdfast

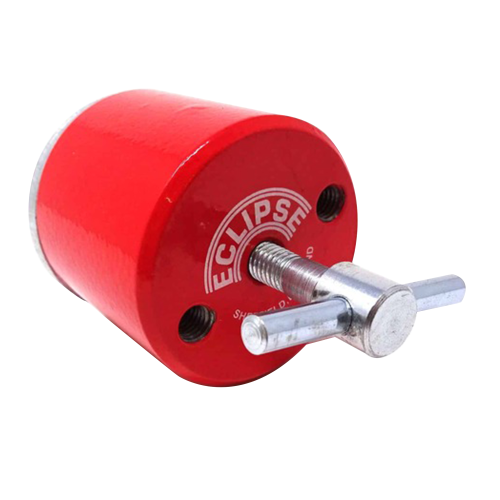

ECLIPSE Magnetic Holdfast
Product Code EC-E941
Product Description Magnetic Holdfast
Brand ECLIPSE
Product Dimensions Diameter 70mm
Height 63.5mm
Fixing Holes PCD 50.8
Features & Benefits Can be built into workholding handling and assembly fixtures to provide a high clamping force and positive grip
Maximum operating temp is 100 Deg Celsius
No. of Holes 2
Weight 2kg
Max Pull 88kg
Barcode 5012095492238
